940-nm-SMT-Flutlichtmodule

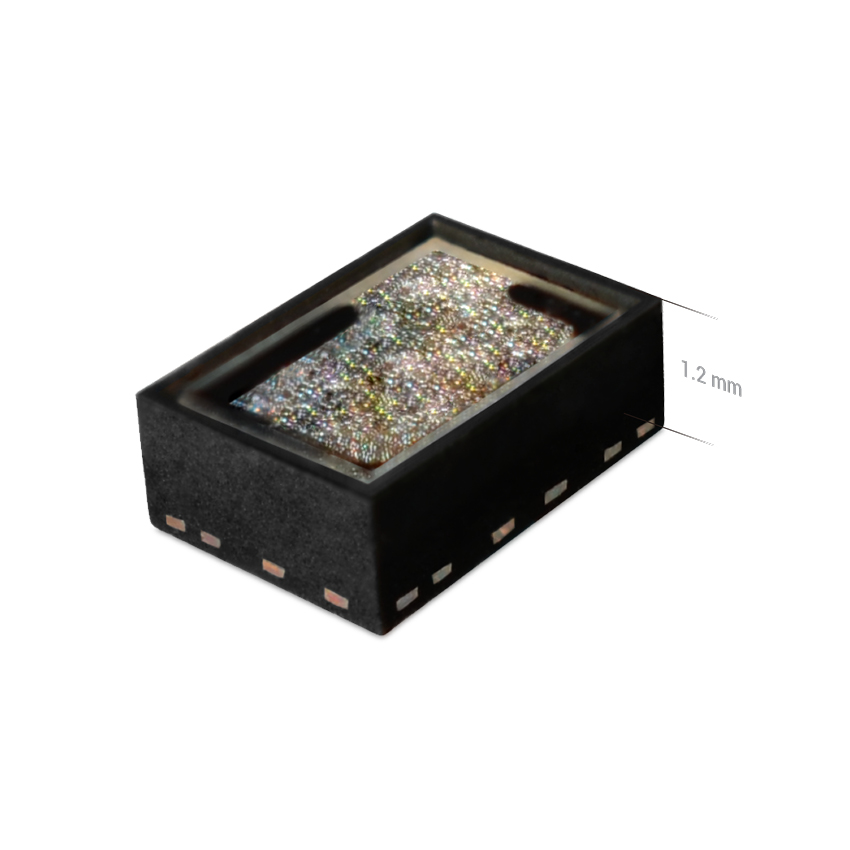

940 Hochwassermodul

Use for 3D sensing tasks needing a large field of illumination (FOI), like driving monitoring systems (DMS), occupancy monitoring systems (OMS), and gesture recognition.

Housed in a SMT package, these ultra-compact modules can be used to create narrow or wide fields of illumination for a broad range of optical 3D sensing tasks. They are cost-optimized for high-volume production and are based on an AECQ-102-qualified VCSEL.

940 nm VCSEL-Flutlichtmodule

Get two different FOI options: either 60° x 45° or 110x85° (Batwing Profile). They feature a nanosecond risetime and include a monitor photodiode for closed-loop operation.

Datenblätter


I940-8904-G02-XX

I940-3001-G01-XX

Abmessungen (Länge x Breite x Dicke)

2,4 × 3,3 × 1,2mm³

2,4 × 3,3 × 1,2mm³

Beleuchtungsfeld (FOI)

I940-8904-G02-01 – 60° x 45°
I940-8904-G02-02 – 110° x 85°
I940-8904-G02-04 – 72° x 58°
I940-8904-G02-07 – 140° x 110°

I940-3001-G01-01 – 60° x 45°
I940-3001-G01-02 – 110° x 85°
I940-3001-G01-04 – 72° x 58°
I940-3001-G01-07 – 140° x 110°

Emitter Count

325

640

Wavelength

940 nm

940 nm

Monitor-Fotodiode (optional)

Ja

Ja

Test Condition

0,1 ms, 5 % Gleichstrom

0.1ms, 1% DC

VCSEL-Chip

V940-8904-G02 (2J)

V940-3001-G01 (3J)

Betriebsstrom

2.7 A

5 A

Output power @ 25C (typ)

4.60 W

11.7 W

Output power @ 60C (typ)

4.40 W

11.1 W

PCE bei 25 °C (typisch)

47%

48%

PCE @ 60C (typ)

45%

46%

Spannung (typisch)

3.60 V

4.80 V



Wichtigste Merkmale

  • Size: 2.4 x 3.3 x 1.2 mm
  • Diffuser, no hot spots
  • High reliability / High-performance VCSEL
  • Automotive-grade packaging material
  • Photodiode for eye safety
  • Automotive Certification: AEC-Q102
  • Assembled in a certified facility
  • Fast rise time (low inductance)
  • Good match of FoI to FoV
  • Narrow spectral width
