Thermocycler
Depend on our robust, compact thermal cyclers in applications with high-duty cycles and/or long lifetime usage, thanks to field-proven lifetimes in excess of 500,000 cycles.
Ideal for use in PCR, biochemical analysis, high-throughput pharma, biosecurity, and physical therapy products, our efficient cyclers are RoHS EU compliant and feature excellent thermal uniformity. Available for selection for height and resistance as matched sets.
Thermocyclers – Product Line Overview
Choose from two product lines, the extended life tec (XLT) series and life cycling cooler (LCC) series that all deliver precise temperature control for high repeatability.
Modellname |
Imax, 27°C (amps) |
Vmax, 27°C (volts) |
ΔTmax, 27°C, N2 (°C) |
Qmax, 27°C (watts) |
Base Ceramic Width (mm) |
ΔT, 50°C, N2 (°C) |

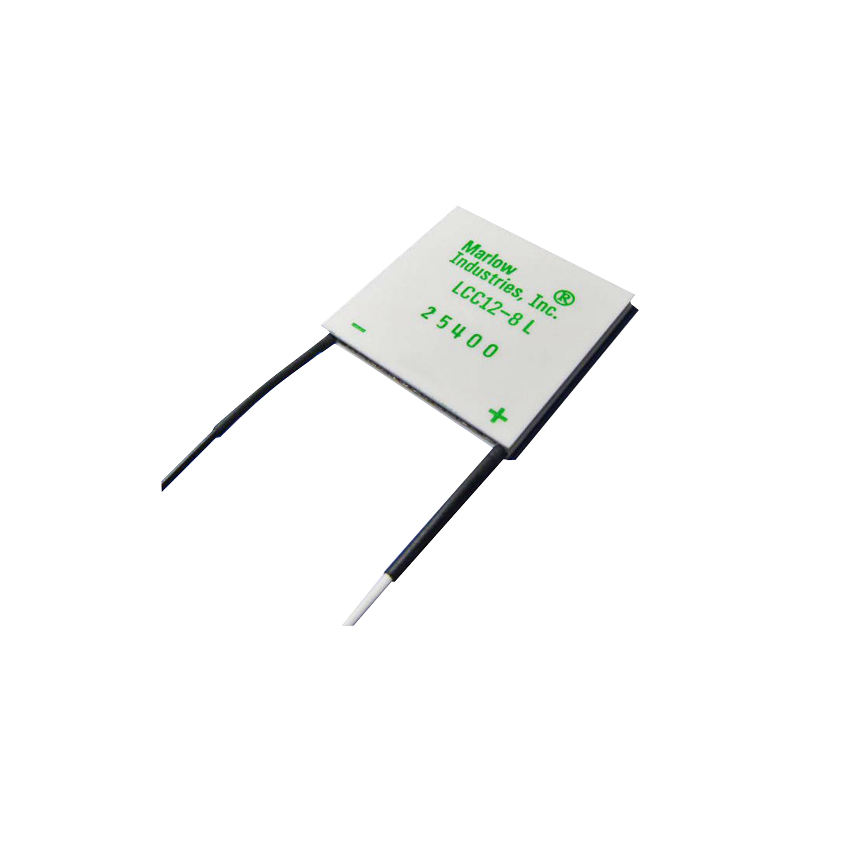

LCC12-8-01LS |
7.4 |
14.7 |
66 |
71 |
40 |
74 |
LCC12-8-16LS |
7.4 |
14.7 |
66 |
71 |
40 |
74 |
XLT2404-04AC |
15.2 |
- |
- |
- |
36.4 |
70 |
XLT2416-04AC |
14.7 |
3.6 |
56 |
33.9 |
25.4 |
63.5 |
XLT2418-04AC |
13.9 |
14.1 |
56.5 |
127 |
40 |
64 |
XLT2419-08AC |
13.9 |
8 |
56.5 |
72 |
30 |
64 |
XLT2420-01LS |
5.6 |
14.4 |
59 |
52 |
40 |
67 |
XLT2422-01LS |
3.7 |
14.7 |
66 |
36 |
30 |
74 |
XLT2423-31AC |
19 |
7.7 |
58 |
95 |
36.4 |
66 |
XLT2427-03AC |
7.5 |
15.8 |
53 |
76.5 |
16.8 |
62 |
XLT3-4-01LS |
3.7 |
3.6 |
65 |
9 |
16 |
73 |
XLT3-8-01LS |
7.4 |
3.5 |
64 |
16.9 |
20 |
72 |
XLT6-4-01LS |
3.7 |
8.2 |
65 |
20 |
23.5 |
73 |
