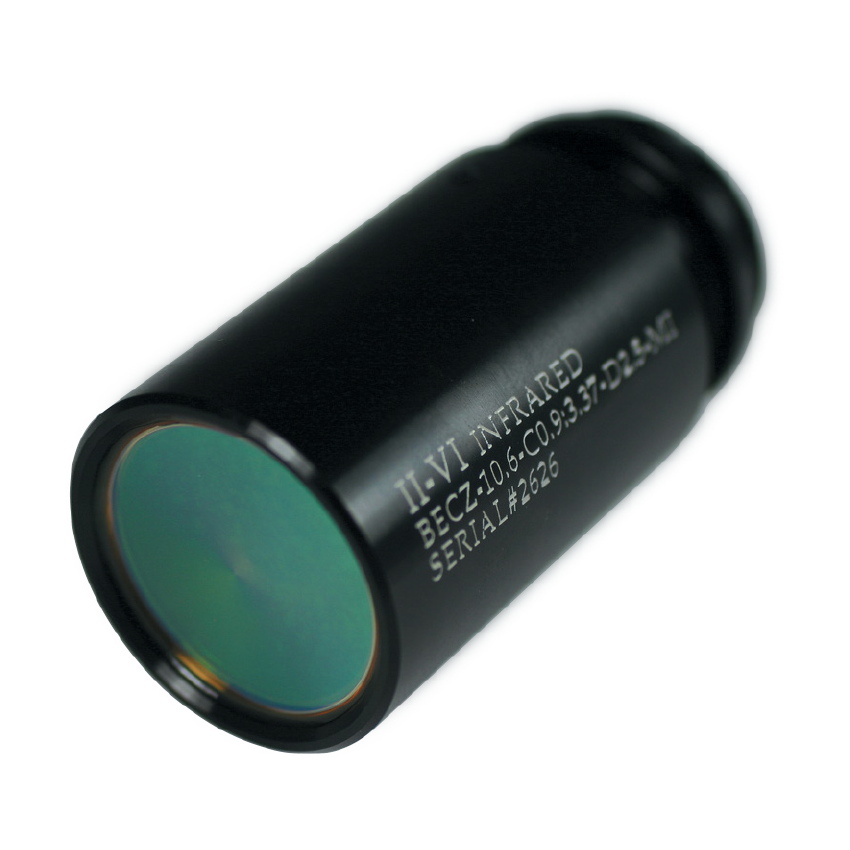

Strahlaufweiter
Transform the diameter of high-power CO2 laser beams with these Galilean telescopes (no internal focus) beam expanders, suitable for a wide range of applications.
These beam-expanding telescopes utilize precision ZnSe optics to offer low insertion loss and high-power operation, and are available with several different input beam diameter and magnification combinations.
Beam Expander Selection
Choose from a range of standard products, with custom sizes and expansion ratios available upon request.
Modell |
Input Beam Diameter (mm) |
Output Beam Diameter (mm) |
Expansion Ratio |
Housing Diameter (mm) |
Housing Length (mm) |
BECZ-10.6-C0.57:4.5-D1.55-FX |
9 |
14 |
1.55 |
36 |
47 |
BECZ-10.6-C0.57:4.5-D1.55-MI |
9 |
14 |
1.55 |
36 |
47 |
BECZ-10.6-C0.57:3.1-D2.1-FX |
9 |
14 |
2.1 |
36 |
47 |
BECZ-10.6-C0.65:2.53-D4-MI |
11.43 |
17.15 |
4 |
38.1 |
54.75 |
BECZ-10.6-C0.675:3.79-D2-A1-MI |
11.43 |
17.15 |
2 |
38.1 |
54.86 |
BECZ-10.6-C0.7:10.0-D1.25-MI |
11.43 |
17.78 |
1.25 |
30.48 |
57.3 |
BECZ-10.6-C0.7:2.85-D3-MI |
11.43 |
17.78 |
3 |
30.48 |
54.76 |
BECZ-10.6-C0.7:2.5-D4-MI |
11.43 |
17.78 |
4 |
30.48 |
54.66 |
BECZ-10.6-C0.7:2.72-D5-MI |
11.43 |
17.78 |
5 |
30.48 |
61.94 |
BECZ-10.6-C0.9:5.6-D1.5-MI |
17.15 |
22.86 |
1.5 |
30.48 |
53.69 |
BECZ-10.6-C0.9:3.37-D2.5-MI-A |
6.1 |
22.86 |
2.5 |
30 |
54.755 |
BECZ-10.6-C0.9:3.37-D2.5-B |
11.43 |
22.86 |
2.5 |
36 |
69.07 |
BECZ-10.6-C0.9:3.37-D2.5-C |
17.15 |
22.86 |
2.5 |
36 |
68.56 |
BECZ-10.6-C0.9:2.43-D5-MI |
11.43 |
22.86 |
5 |
30.5 |
56.5 |
BECZ-10.6-C0.9:2.5-D7.5-MI |
11.43 |
22.86 |
7.5 |
30.48 |
61.94 |
